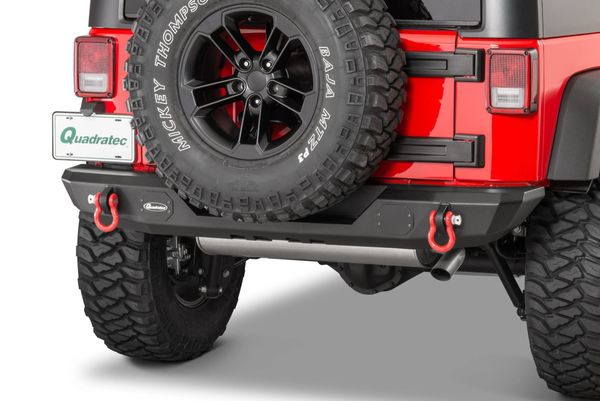

Quadratec Mid Width Rear Bumper for 07-18 Jeep Wrangler JK

Quadratec’s Mid-Width Rear Bumper for JK Wrangler features a 4mm thick steel construction and a one piece design that bolts to existing mounting points with no drilling or modifications. Bumpers can accommodate up to a 35” spare tire and measure 64” wide to provide increased tire clearance. Other features include D-ring mounts, installation hardware and detailed instructions. Bumpers are e-coated for corrosion resistance and finished with a durable black textured powder coating. There are two removable cover plates that reveal integrated light mounts for most standard 3” cube lights or surface mount style lights. Our optional plug-n-play rear backup light harness is included with the light kit options and makes installing rear backup lights quick and easy. Works with all popular tow hitches (sold separately). Three year limited warranty.

Please Note: Backup Harness is Only Compatible with USA Model Jeeps and Not for Overseas Models.

Optional 90° Flood Light Package: We have made it simple to add to add more lighting on your Jeep Wrangler JK to see better while backing up. These powerful 60 watt lights produce a bright 6000K light output with 5,400 Lumens per pair. They are extremely durable with a IP67 rated waterproof construction and feature unbreakable polycarbonate clear lenses. Heat sink finned housings feature a satin black powder coat finish. Kits include stainless steel hardware and mounting brackets. Industry standard Deutsch-style connectors feature weather tight seals for years of trouble free service. This ultimate kit simply plugs into your factory drive side tail light harness for a plug-n-play installation.

Ultimate Design: We give you a trail ready bumper at a reasonable price. Being a mid width bumper you will gain extra tire clearance for better approach angles on the trails. D-ring mounts will come in handy with recovery situations and the ability to carry up to a 35" spare tire in case you want to outfit your Jeep with larger tires.

Strong Construction: This one piece bumper is made from 4mm thick steel then goes through an e-coated process to protect from corrosion giving you a long lasting bumper.

Quick & Simple Installation: You can breath easy knowing that you will not have to drill or make any type of modifications to your Jeep seeing that this is a simple bolt on installation.

Quadratec LED Light Specifications (option):

• Beam Pattern - 90° Flood
• Lumens - 5,400 (2,700 per light)
• Color Temperature - 6,000K
• Watts - 60W (pair)
• Die-Cast Aluminum Housing with Heat Sink Fins
• Polycarbonate Lens
• Durable Stainless Steel Hardware
• IP-67 Waterproof Rating - Weather Tight Deutsch Style Connectors
• Average LED Life Span - 50,000 Hours

INSTALLATION NOTES

Installation Difficulty:

Level 2Intermediate

Instructions have been updated as of 6/29/20

Installation Time: 1-2 hours

Backup Wiring Harness (Option)

Installation
Instructions

Rear Bumper

Installation
Instructions

PARTS INCLUDED

• Rear Bumper
• Light Filler Plates
• Installation Hardware
• Lights & Backup Wiring Harness (optional)

WARRANTY

3 Year Limited Warranty
