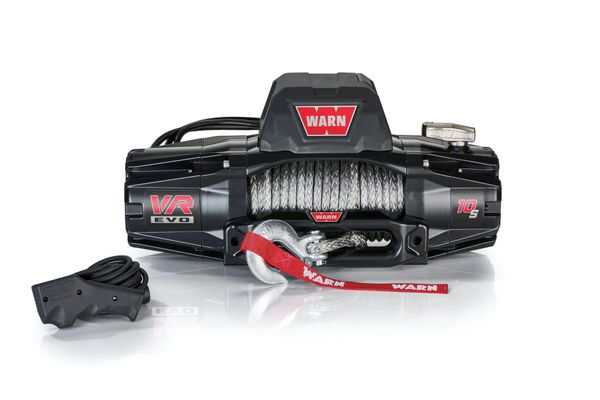

WARN 103253 VR EVO Series Winch 10,000lb with Synthetic Rope

The WARN VR EVO Series Winch sets the standard for what consumers are looking for in the world of winches. Offering fast line speeds with lower amp draw at a price that is extremely competitive. Made with a bold tactical look giving your vehicle an aggressive style with premium recovery equipment. Whether you are attending an off-road event in your Jeep Wrangler JK and get stuck in the mud, using your Jeep Wrangler JL to pull out out some bushes on your property, or need assistance climbing those overly steep obstacles in your rock buggy Warn has you covered. The hardest working standard-duty winch that Warn has ever offered which is built to outlast the competition and your expectations. Made with a powerful series wound motor and a 3-stage planetary gear train for ultimate performance. The IP68-rated waterproof winch keeps the elements out while the high-end Albright contactor delivers maximum reliability. Available in 8,000 lb, 10,000 lb or 12,000 lb capacities with the option for a synthetic or steel line and a versatile control pack that can be re-located. Designed and tested by Warn engineers in the USA.

Legendary Warn Recovery: Warn offers the most reliable winch in the marketplace. A winch is only good when it works when you are in a bind. There is nothing worse than trying to use a winch that has been sitting on the front of your Jeep for months and your stuck in that nasty mud hole with a defective winch that does not work. The Warn brand name is know world wide for dependable winches that you can trust with endless reviews and customers proving it.

Trail Ready Ultimate Pulling Power: The 8,000 lb winch offers fast, efficient pulling power, while the 10,000 lb winch has the perfect blend of speed and power. Then there is the 12,000 lb winch that is made for heavier loads and those larger vehicles. The perfect blend of options for every application.

2-in-1 Wired/Wireless Remote: The re-designed remote offers the option to go wireless giving you more versatility and function. Also including an 11.5 foot lead when needed for backup or for the old school guys that want it hard wired. Making this winch very user friendly.

Standard Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)

Overall Winch Dimensions: 21" L x 6.3" D x 10.1" H (534mm L x 160.5mm D x 256mm H)

VR EVO 8, VR EVO 8-S SPECS/PART NUMBERS

Part Numbers: PN 103250 (VR EVO 8), 103251 (VR EVO 8-S)

Rated Line Pull: 8,000 lbs (3629 kgs)

Motor: 12V DC, Series Wound™

Electrical Controls: Albright Contactor

Remote Control: 2-in-1 plug in remote with wireless capability and 11.5' (3.5m) Lead

Geartrain: 3-Stage Planetary

Gear Ratio: 218:1

Clutch (freespooling): Rotating Ring Gear Clutch

Brake: Spring Brake

Drum Diameter/Length: 2.5"/9.0" (6.73cm/23cm)

Weight: Shipping Steel - 83.53 lbs (37.89 kgs), Shipping Synthetic - 72.40 lbs (32.84 kgs)

Rope: Steel - 5/16" x 90' (8mm x 27.4m), Synthetic - 3/8" x 90' (9.5mm x 27.4m)

Fairlead: Steel - Roller, Synthetic - Die Cast Hawse

Recommended Battery: 650 CCA min. for winching

Battery Leads: .098" x 6.5' (25mm x 2m)

Finish: Powder coat finish over primer undercoat

Warranty: Limited Lifetime

VR EVO 8, VR EVO 8-S: 12V DC Performance Specs (based on first layer of drum)
Line Pull Lbs (Kgs)	Line Speed Ft/min (M/min)	Motor Current	Pull by layer layer/Lbs (Kgs)
0	24.8 (7.6)	57 amps	1/8000 (3630)
2000 (910)	13.1 (4.0)	122 amps	2/6716 (3046)
4000 (1810)	9.6 (2.9)	183 amps	3/5788 (2625)
6000 (2720)	7.6 (2.3)	242 amps	4/5085 (2306)
8000 (3630)	6.0 (1.8)	298 amps
